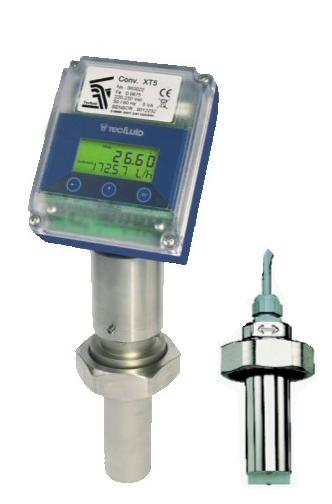

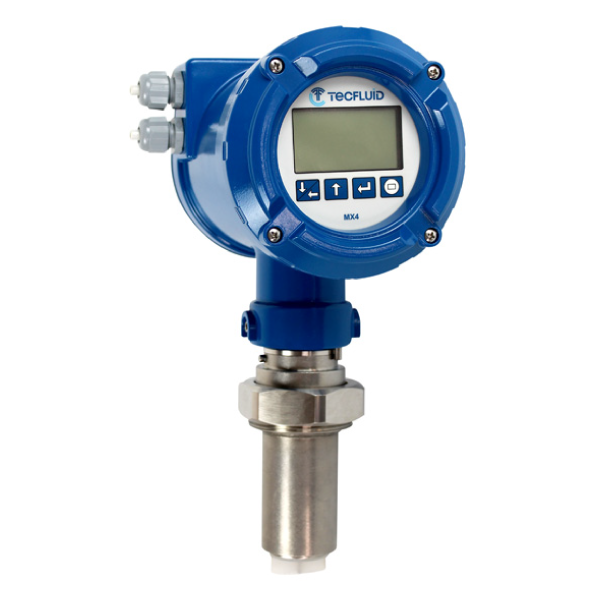

FLOMAT Electromagnetic Insertion
| Applications: | For use in large diameter pipes or open channels. Available with fully programmable display with various output options or as a simpler factory set “blind” unit having only 4-20 mA and 1 khz pulse output. | ||||||
| Flow Range: | 10 m3/h to 56 000 m3/h 0…0.5 to 10 m/s |
||||||
| Accuracy: | ±3.5% of reading | ||||||
| Connection: | 2 1/4″ BSP, DN40 flange (others on request) | ||||||
| Output: | 4-20mA & frequency, Local Indication, Hi/Lo Alarm out, 8 Digit Totaliser, Logic Output for Batching | ||||||
| Materials: |
|
||||||
| Diameters: | DN40 to DN2000 | ||||||
| Pressure: | 16 bar | ||||||
| Temperature: | -20ºC to +130ºC |
