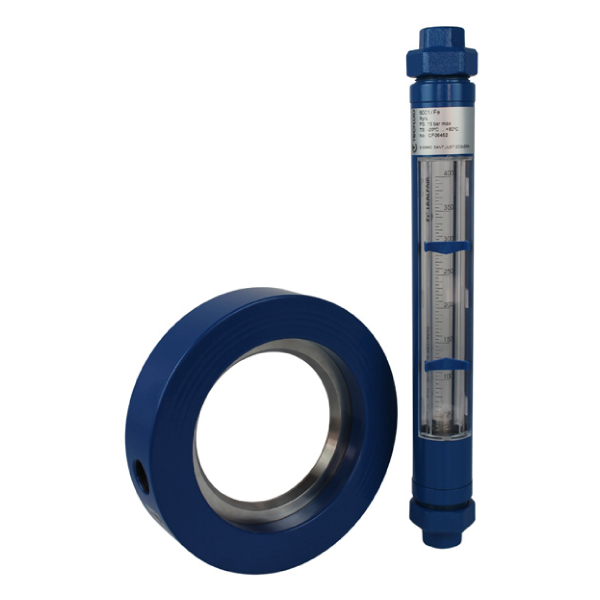

PR-61 / PR-62 / PR-25 By-Pass

Applications: Cost effective flow indication of liquids and gases in larger pipe lines.
Flow Range: 2 m3/h to 20 000 m3/h (Water)
30 Nm3/h to 300 000 Nm3/h (Air)
Accuracy: ±4% FS
Connection: 3/4″ BSP, Flanges to suit DIN, ANSI and others
Scale: 7:1
Materials: SS-316L, PVC, PP, PTFE
Temperature: -20ºC to +400º
Pressure: 16 to 200 bar
Alarms: Magnetic actuated micro switch, Inductive proximity switch, Optical position detector, Reed switch, Hall effect position detector
Transmitter: 4-20mA, 4-20mA + totaliser, 4-20mA (EEx ia IIC T4), 4-20mA (EEx ia IIC T6), 3-15 psi

PR-61.pdf (179 kB)
