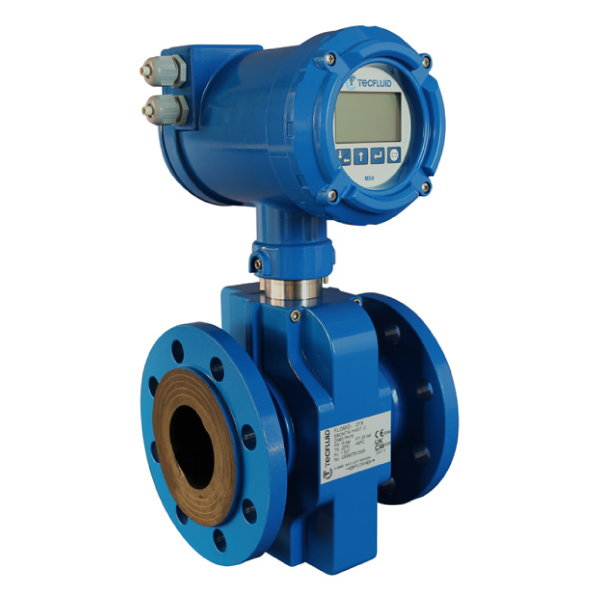

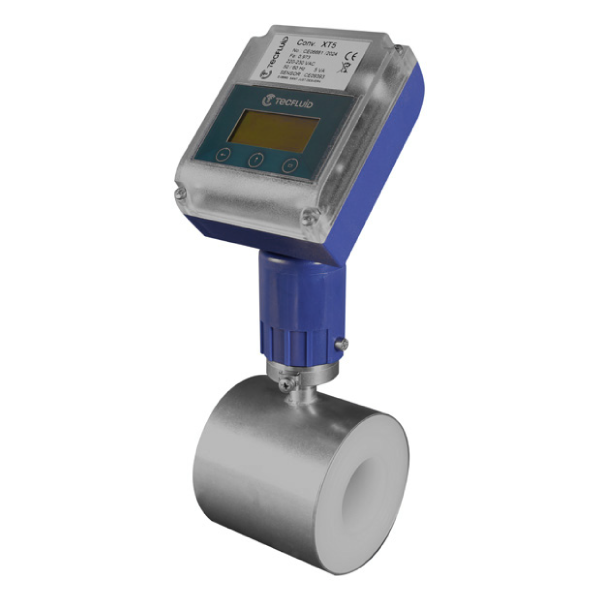

FLOMID Electromagnetic

Applications: For conductive fluids only. Ideal for most agressive chemical solutions. Available with fully programmable display with various output options or as a simpler factory set “blind” unit having only 4-20 mA and 1 khz pulse output.
Flow Range: 10 l/h to 300 m3/h
0…0.5 to 10 m/s
Accuracy: ±0.5% of reading
Connection: DN3 to DN150 sandwich, DN3 to DN500 flange (DIN or ANSI), DN3 to DN100 clamp, Naue, DIN11851
Output: 4-20mA & frequency, Local Indication, Hi/Lo Alarm out, 8 Digit Totaliser, Logic Output for Batching
Materials:
Body: 316L Stainless Steel
Liner: PP, PTFE, PVDF, Hard Rubber
Electrodes: Hastelloy C, others on request
Pressure: 16 bar (DN10 to DN80), 10 bar (DN100 to DN150)
Temperature: -20ºC to +130ºC

Flomid.pdf (970 kB)
