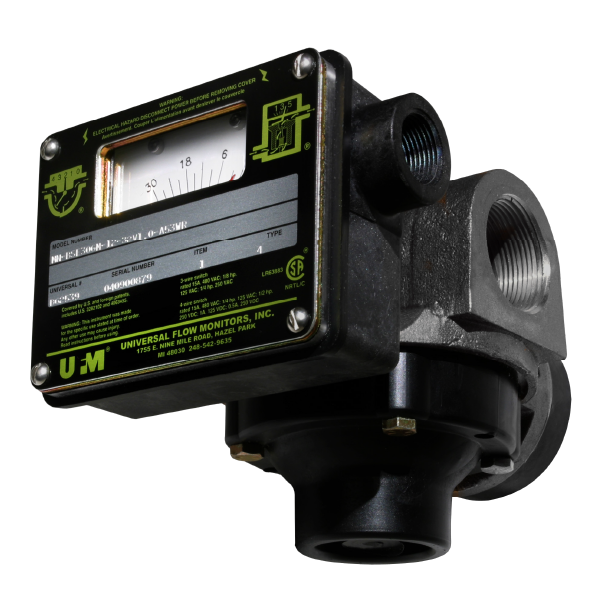

MN, MM, MH Series

Flow: 60 – 600 litres / minute (Max fluid viscosity: 650 cP)
Materials:
Housing: aluminum, anodized aluminum, brass, cast-iron, or nickel-plated cast-iron, naval bronze, carbon steel, or nickel-plated carbon steel, and 316 stainless steel
Internal parts: 300 series stainless steel, 316 stainless steel, titanium, monel, and tantalum
Seals: Buna N, EPR (EPDM), Viton, Kalrez and Teflon
Port Size: 1/2″ – 2″ Threaded (NPT, SAE, BSPP, BSPT or JIS) or 1/2″ – 2″ Flanged (ANSI or DIN)
Pressure Rating: MN: 300 psi (20.7 bar), MM: 500 psi (34.5 bar), MH: 2000 psi (138 bar)
Temperature: 200°F (93°C), optional 300 & 400°F (148 & 204°C)
Accuracy: ±5% of scale reading
Options: 1 – 2 digital outputs, 4 – 20 mA analogue output, dual spring

MNdatasht.pdf (334 kB)
