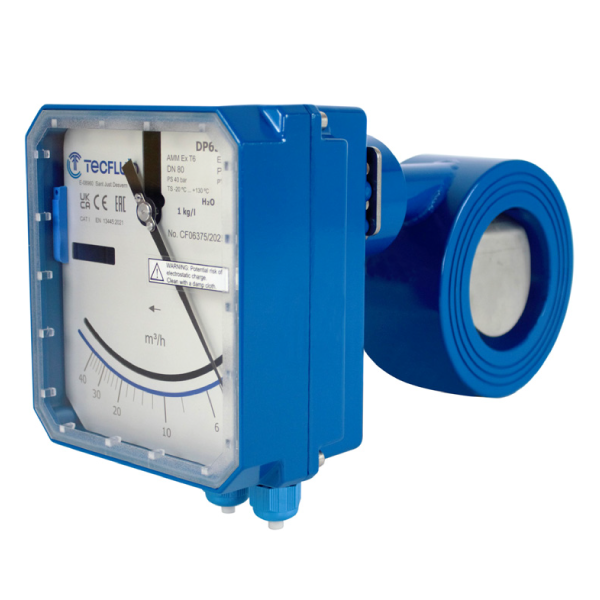

DP-65 / DP-500 Target

Applications: For liquids only. Ideal for dirty fluids, has high tolerance to solids (up to 15%) and immune to viscosities to 400 cP. Mounts in any direction to measure flow in vertical (up/down) or horizontal pipe lines.
Flow Range: 0.8 m3/h to 1 600 m3/h
DP-65: ±2.5%
DP-500: ±4%
DP-65: DN40 to DN300 sandwich
DP-500: DN250 to DN500 flange (DIN, ANSI or others)
Scale: 10:1
Materials: Polyamide coated steel (Standard), SS-316L
Temperature: -160ºC to +130/180ºC
Pressure: 10 to 40 bar
Alarms: Magnetic actuated micro switch, Inductive proximity switch
Transmitter: 4-20mA, 4-20mA + totaliser, 4-20mA (EEx ia IIC T4), 4-20mA (EEx ia IIC T6), 3-15 psi

DP-65.pdf (1157 kB)
