tecf_sc250

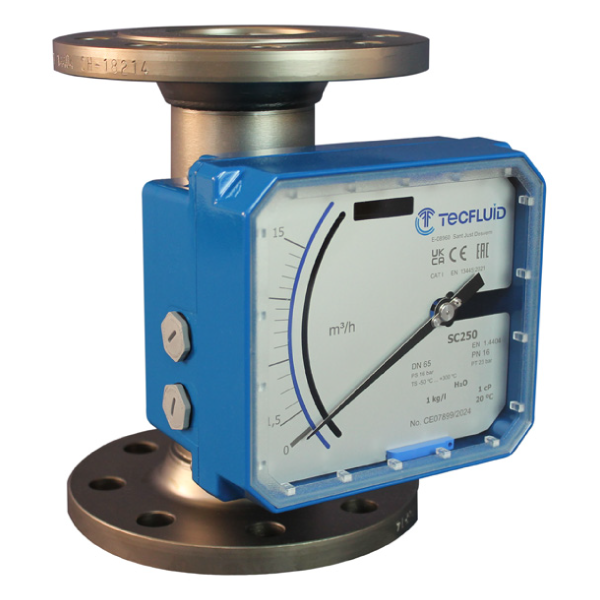

SC-250

Applications: For liquids, gases and steam. Indication by magnetic coupling.
Flow Range: 2.5 l/h to 180 m3/h (Water)
70 Nl/h to 5 400 Nm3/h (Air)
Accuracy: ±2.5%
Connection: DN15 to DN150 DIN Flanges, Others on request
Scale: 10:1
Materials: SS-316L, PVC, PTFE, Hastelloy
Temperature: -160ºC to +400ºC
Pressure: 16 to 400 bar
Alarms: Magnetic actuated micro switch, Inductive proximity switch
Transmitter: 4-20mA, 4-20mA + totaliser, 4-20mA (EEx ia IIC T4), 4-20mA (EEx ia IIC T6), 3-15 psi

SC-250.pdf (1525 kB)
