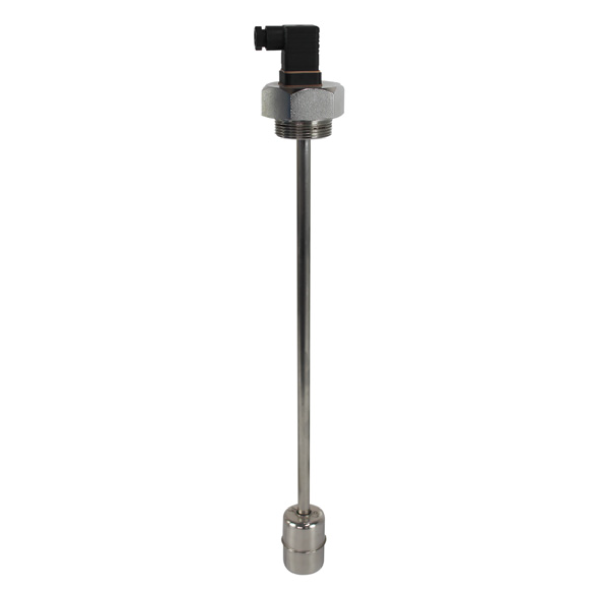

LC30
| Applications: | A multi point level switch for liquids. The reed switches are bistable (i.e. the switch indicates whether the float is above or below it. |
| Length: | 100 to 6 000 mm |
| Materials: | SS-316L, PVC, PTFE |
| Connection: | 1 1/2″ BSP threaded or DN40 DIN flange |
| Output: | Bistable Reed Switch, 1 to 6 points |
| Accuracy: | ±5 mm |
| Pressure: | 16 to 100 bar |
| Temperature: | -40ºC to +150ºC |
| Viscosity: | up to 1 500 mPa.s |
| Density: | 0.45 to 3 kg/l |
