Applications:

measuring, metering, hydraulics, monitoring, controlling and regulating, processing, automotive industry, plastics technology

Flow:
(at 21 cSt)

Size	l/min	GPM	Imp./l	Imp./Gal
VS 0.02	0.002 ~ 2	0.0005 ~ 0.53	50 000	189 272
VS 0.04	0.004 ~ 4	0.0011 ~ 1.06	25 000	94 636
VS 0.1	0.01 ~ 10	0.0026 ~ 2.64	10 000	37 854.4
VS 0.2	0.02 ~ 18	0.0053 ~ 4.76	5 000	18 927.2
VS 0.4	0.03 ~ 40	0.0079 ~ 10.57	2 500	9 463.6
VS 1	0.05 ~ 80	0.0132 ~ 21.13	1 000	3 785.44
VS 2	0.1 ~ 150	0.0264 ~ 39.63	500	1 892.72
VS 4	1 ~ 300	0.2642 ~ 79.25	250	946.36
VS 10	1.5 ~ 525	0.3963 ~ 138.69	300	1 135.63

Materials:

Body:	Cast Iron GGG 40 or Stainless Steel 1.4305
Bearings:	Ball / Plain / Plain (copper-free), dependent on liquid
Seals:	FPM (Standard), NBR, PTFE, EPDM

Accuracy:

±0.3% of measured value at viscosity > 20 cSt (< 20 cSt reduced accuracy)

Pressure:

315 bar / 4 568 psi (Cast Iron), 450 bar / 6 526 psi (Stainless Steel)

Temperature:

-40ºC to +210ºC with high temerature sensor

Viscosity:

1 to 100 000 cSt

Applications:

inks, paints, chemicals, pharmaceuticals, 2K machines, petrochemicals

Flow:
(at 21 cSt)

Size	l/min	GPM	Imp./l	Imp./Gal
VHM 01	0.01 ~ 1	0.003 ~ 0.264	30 000	113 563
VHM 02-1	0.05 ~ 2	0.013 ~ 0.528	8 800	33 312
VHM 02-2	0.10 ~ 4	0.026 ~ 1.056	4 400	16 656
VHM 02-3	0.40 ~ 8	0.106 ~ 2.113	2 200	8 328
VHM 03-2	0.50 ~ 20(30)	0.132 ~ 5.283	1 000	3 785
(30): with a single channel flow sensor only

Materials:

Body, Gears:	Stainless Steel 316
Bearings:	Tungsten Carbide
Seals:	FEP-FPM (Standard), NBR, PTFE

Accuracy:

±0.5% of measured value at viscosity > 10 cSt (< 10 cSt reduced accuracy)

Pressure:

250 bar / 3 625 psi

Temperature:

-20ºC to +120ºC

Viscosity:

1 – 20.000 cSt

Applications:

inks, paints, chemicals, pharmaceuticals, 2K machines, petrochemicals

Flow:
(at 21 cSt)

Size	l/min	GPM	Imp./l	Imp./Gal
VHM 01	0.01 ~ 1	0.003 ~ 0.264	30 000	113 563
VHM 02-1	0.05 ~ 2	0.013 ~ 0.528	8 800	33 312
VHM 02-2	0.10 ~ 4	0.026 ~ 1.056	4 400	16 656
VHM 02-3	0.40 ~ 8	0.106 ~ 2.113	2 200	8 328
VHM 03-2	0.50 ~ 20(30)	0.132 ~ 5.283	1 000	3 785
(30): with a single channel flow sensor only

Materials:

Body, Gears:	Stainless Steel 316
Bearings:	Tungsten Carbide
Seals:	FEP-FPM (Standard), NBR, PTFE

Accuracy:

±0.5% of measured value at viscosity > 10 cSt (< 10 cSt reduced accuracy)

Pressure:

250 bar / 3 625 psi

Temperature:

-20ºC to +120ºC

Viscosity:

1 – 20.000 cSt

Applications:

inks, paints, chemicals, pharmaceuticals, 2K machines, petrochemicals

Flow:
(at 21 cSt)

Size	l/min	GPM	Imp./l	Imp./Gal
VHM 01	0.01 ~ 1	0.003 ~ 0.264	30 000	113 563
VHM 02-1	0.05 ~ 2	0.013 ~ 0.528	8 800	33 312
VHM 02-2	0.10 ~ 4	0.026 ~ 1.056	4 400	16 656
VHM 02-3	0.40 ~ 8	0.106 ~ 2.113	2 200	8 328
VHM 03-2	0.50 ~ 20(30)	0.132 ~ 5.283	1 000	3 785
(30): with a single channel flow sensor only

Materials:

Body, Gears:	Stainless Steel 316
Bearings:	Tungsten Carbide
Seals:	FEP-FPM (Standard), NBR, PTFE

Accuracy:

±0.5% of measured value at viscosity > 10 cSt (< 10 cSt reduced accuracy)

Pressure:

250 bar / 3 625 psi

Temperature:

-20ºC to +120ºC

Viscosity:

1 – 20.000 cSt

Applications:

inks, paints, chemicals, pharmaceuticals, 2K machines, petrochemicals

Flow:
(at 21 cSt)

Size	l/min	GPM	Imp./l	Imp./Gal
VHM 01	0.01 ~ 1	0.003 ~ 0.264	30 000	113 563
VHM 02-1	0.05 ~ 2	0.013 ~ 0.528	8 800	33 312
VHM 02-2	0.10 ~ 4	0.026 ~ 1.056	4 400	16 656
VHM 02-3	0.40 ~ 8	0.106 ~ 2.113	2 200	8 328
VHM 03-2	0.50 ~ 20(30)	0.132 ~ 5.283	1 000	3 785
(30): with a single channel flow sensor only

Materials:

Body, Gears:	Stainless Steel 316
Bearings:	Tungsten Carbide
Seals:	FEP-FPM (Standard), NBR, PTFE

Accuracy:

±0.5% of measured value at viscosity > 10 cSt (< 10 cSt reduced accuracy)

Pressure:

250 bar / 3 625 psi

Temperature:

-20ºC to +120ºC

Viscosity:

1 – 20.000 cSt

Category: Uncategorized.

Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “test product”

test product

Reviews

Related Products

M-21 Armoured Purge Meter

LC-40

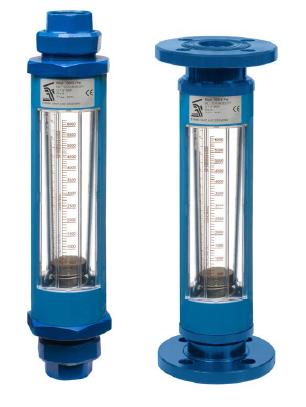

6001/2 Series Glass Tube Flow Meter
