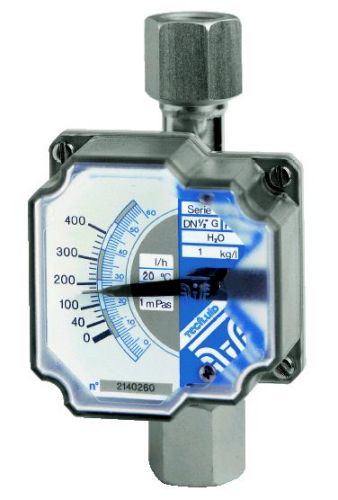

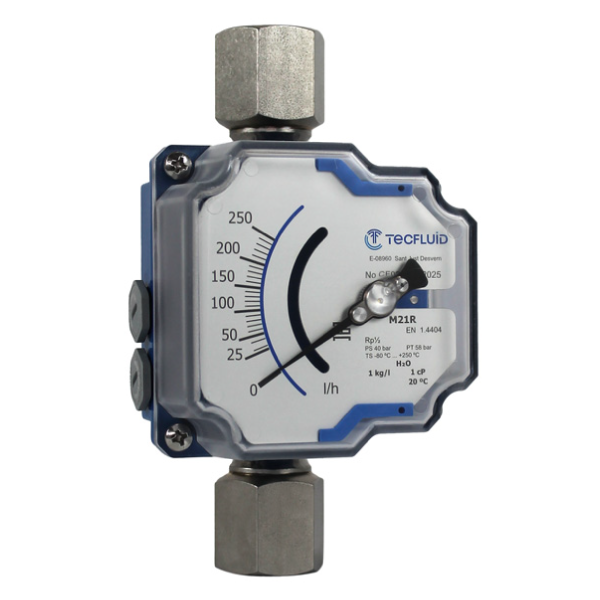

M-21 Armoured

Applications: For low flows in liquids, gases and steam. Indication by magnetic coupling. Cost effective replacement for glass tube meters.
Flow Range: 0.1 l/h to 1 000 l/h (Water)
4 Nl/h to 30 Nm3/h (Air)
Accuracy: ±4%
Connection: 1/4″ to 3/4″ NPT, BSP, Clamp, Naue
Scale: 10:1
Materials: SS-316L (Standard), PTFE
Temperature: -20ºC to +200ºC
Pressure: 16 to 400 bar
Alarms: Inductive proximity switch
Transmitter: 4-20mA

M-21.pdf (424 kB)
